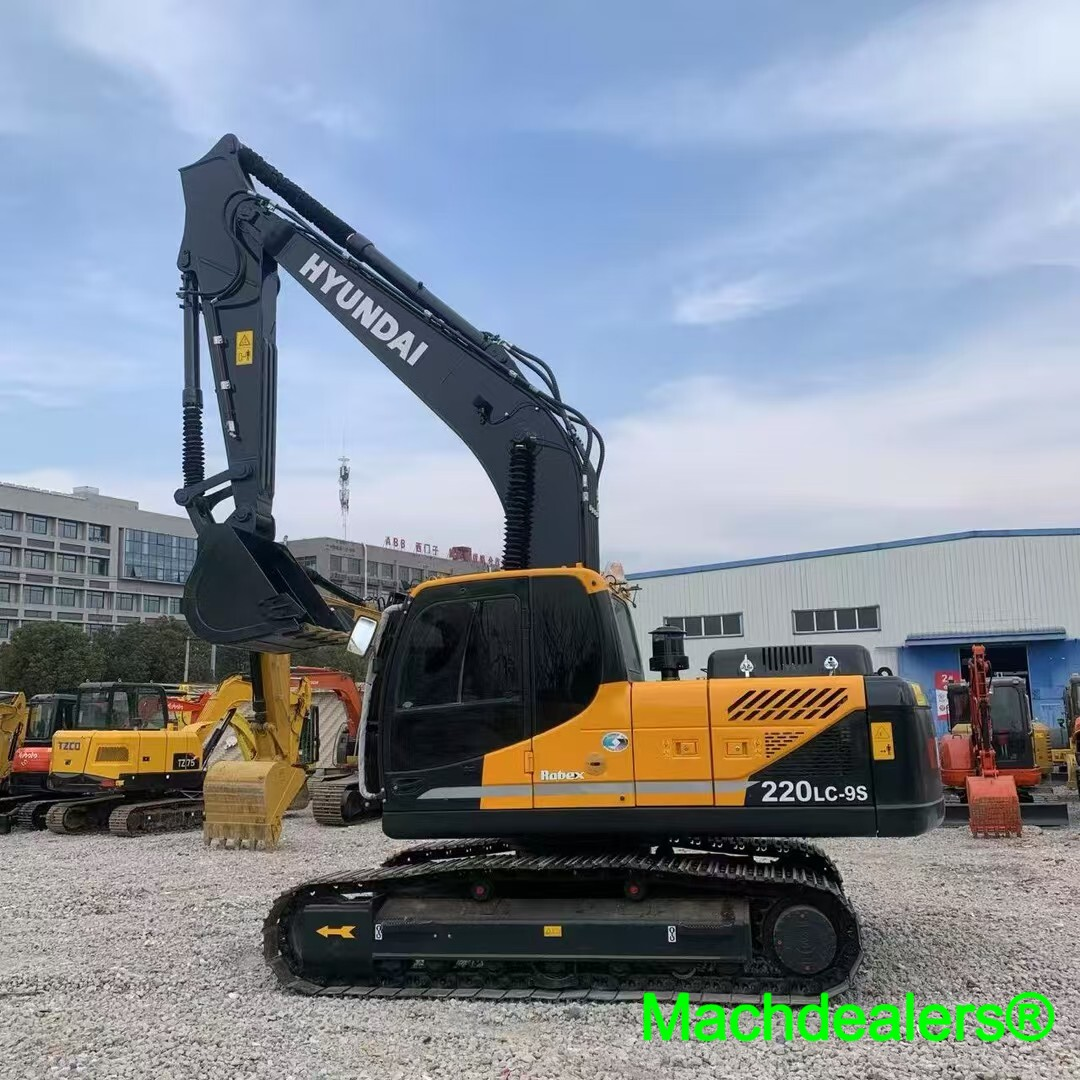

2015 Hyundai 220LC-9S Crawler Excavator
Condition:Refurbished
Hours:1600
Country:Pakistan
Overview
| Brand | Hyundai |
|---|---|
| Model | 220LC-9S |
| Country | Pakistan |
| Year | 2015 |
| Hours | 1600 |
| Operating Weight | 22 Tons |
| Bucket Capacity | 1.0 m³ |
| Condition | Refurbished |
| Supplier Name | Alpha Trading Corporation (ATC) |
Product Description

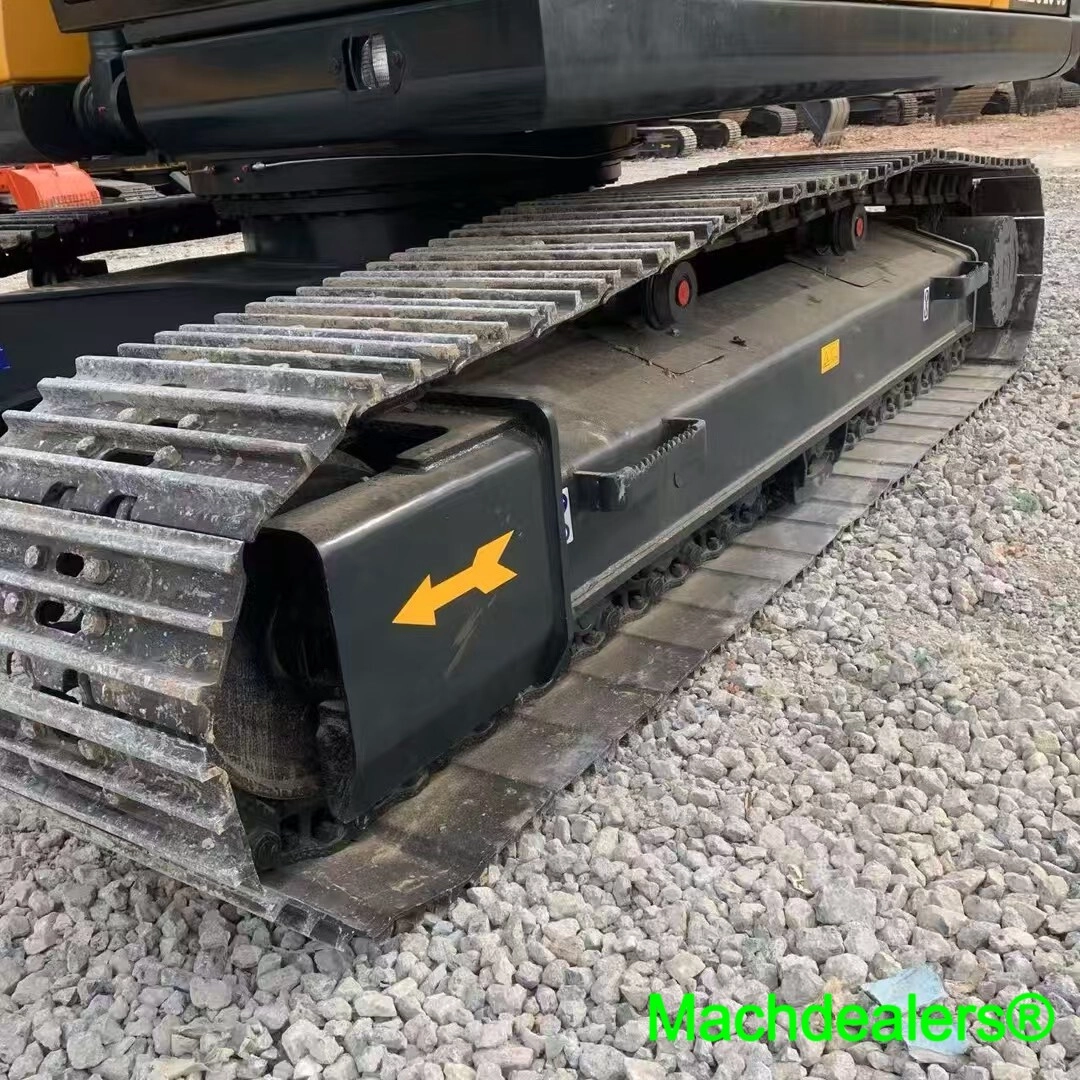

After the engine starts, engine sounds clean but didn’t get a chance to get it on the road and run it under load as it was in the back corner of the yard with 6 other machines. Upon opening the engine compartment and inspecting the interior, no oil leaks were found, and no oil burning was observed after starting the engine.As far as tracks go idon’t see any reason to suspect it as I would expect maybe 90-95% left on one that had been worked for a season, no real problem there and most likely a couple more year til you might start looking at replacements. Red seals are intact, no wobble so far when I pushed on the rollers as well as no loose idlers (front and rear).

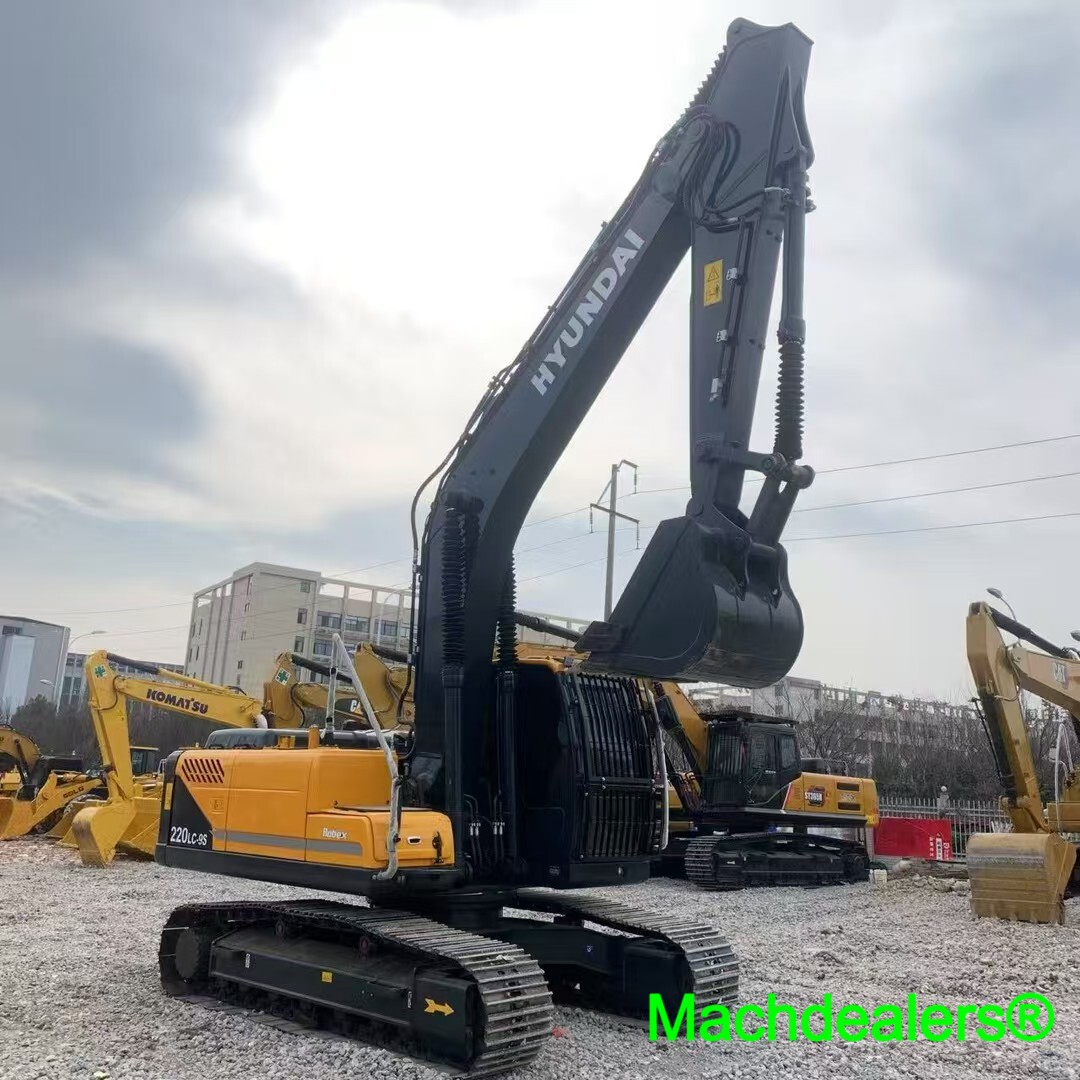

Looks like it wasn’t trashed inside, and the seat is fine, I saw no rips, any controls appear fine, and no glass was broken and smudged (except what you can expect from a cab, annoyingly couldn’t even get in because they didn’t have the side with them and the operator was away, but I did peek around the windows and it appears fine). The boom and stick were straight, no cracks visible in the welds and the cylinder rods were clean with no pitting or scoring, always a positive sign on these Hyundai’s as they rapidly develop the latter when they go bad. A bucket is just a normal bucket used for digging with some of the teeth being worn almost halfway down the bucket and the pins are not loose as I shook it by hand. During the inspection it was a cloudy day and might have been raining, so wasn’t able to spend as much time on the boom as wanted, but did get the main points. Machine is level, there is no sag in the tracks. No leaks/pools of fresh hydraulic fluid under. This is clearly a well-maintained and refurbished high-quality excavator with excellent performance. It’s not a steal, but is worth considering if the price is right.
Product Condition Checklist
| Item | Condition |
|---|---|
| Brand | HYUNDAI |
| Model | 220LC – 9S |
| Upper Structure | Good |
| Boom | Ok |
| Arm | Ok |
| Bucket | Used |
| Boom Cylinder | Ok |
| Arm Cylinder | Ok |
| Bucket Cylinder | Ok |
| Hydraulic Hoses | Good |
| Cab Glass | Clean |
| Cab Roof | Good |
| Engine Cover | Good |
| Counterweight | Ok |
| Swing Bearing | Good |
| Slew Ring | Ok |
| Left Track | Used |
| Right Track | Used |
| Track Shoes | Worn |
| Track Rollers | Ok |
| Front Idler | Good |
| Sprocket | Ok |
| Track Frame | Good |
| Track Guard Left | Present |
| Track Guard Right | Present |
| Undercarriage | Dirty |
| Grease Points | Ok |
| Pins & Bushings | Worn |
| Direction Arrow | Present |
| Safety Decals | Present |
| Warning Labels | Yes |
| Engine Access | Good |
| Radiator Cover | Ok |
| Fuel Tank | Good |
| Hydraulic Tank | Good |
| Battery Box | Present |
| Steps | Ok |
| Handrails | Good |
| Paint Overall | Good |
| Orange Paint | Faded |
| Black Paint | Good |
| Work Site | Used |
| Overall | Good |
Detailed Inspection & Specification Report
| Category | Item | Condition |
|---|---|---|
| Key Features & Condition | Safety Label | No |
| Key Features & Condition | Auto Lube System | No |
| Key Features & Condition | Camera | Not visible |
| Key Features & Condition | Quick Coupler | Hydraulic type |
| Key Features & Condition | Hammer Lines | Present |
| Key Features & Condition | Grapple Lines | No |
| Key Features & Condition | Mono Boom | Yes |
| Key Features & Condition | Horn | Not visible |
| Operator Cabin Details | Seat | Ok |
| Operator Cabin Details | Doors | Glass, ok |
| Operator Cabin Details | Windows | Clean |
| Operator Cabin Details | Wipers | Yes |
| Operator Cabin Details | Cab Structure | Ok |
| Engine & Performance | Fuel Type | Diesel |
| Engine & Performance | Cooling | Ok |
| Engine & Performance | Exhaust | Black pipe |
| Engine & Performance | Leaks | Minor |
| Exterior Condition & Visual Inspection | Main Frame | Used, dirty |
| Exterior Condition & Visual Inspection | Covers | Black mesh |
| Exterior Condition & Visual Inspection | Engine Hood | Ok |
| Exterior Condition & Visual Inspection | Access Doors | Present |
| Exterior Condition & Visual Inspection | Steps | Yellow, 3 level |
| Exterior Condition & Visual Inspection | Boom | Black, used |
| Exterior Condition & Visual Inspection | Arm | Long reach, used |
| Exterior Condition & Visual Inspection | Counterweight | Black, ok |
| Exterior Condition & Visual Inspection | Paint | Faded yellow |
| Hydraulic System | Leaks | Minor |
| Hydraulic System | Boom Jack | Ok |
| Hydraulic System | Bucket Jack | Ok |
| Hydraulic System | Arm Jack | Ok |
| Hydraulic System | Swing Cylinder | Ok |
| Transmission & Drive Train | Swivel | Ok |
| Transmission & Drive Train | Boom Pins | Worn |
| Transmission & Drive Train | Arm Pins | Used |
| Transmission & Drive Train | Bucket Pins | Ok |
| Transmission & Drive Train | Slewing Ring | Ok |
| Attachments | Type | Digging bucket |
| Attachments | Status | Used, teeth worn |
| Attachments | Coupler | Hydraulic |
| Tracks Condition | Front Right | Worn |
| Tracks Condition | Front Left | Worn |
| Tracks Condition | Rear Right | Used |
| Tracks Condition | Rear Left | Used |
| Tracks Condition | Width | 600mm |
| Tracks Condition | Type | Steel rubber pad |
| Tracks Condition | Damages | Dirty, mud |
Estimated Price
$31,000.00
Note: “This price does not include export duties and shipping costs. Please consult the supplier for specific transaction procedures and details.”
The supplier of this machine
Supplier Name:Alpha Trading Corporation (ATC)
Supplier Description:Established in 1985, ATC is one of Pakistan’s largest traders of heavy machinery parts and complete machines.
Supplier address:************** Badami Bagh, Lahore, 54000, Pakistan
