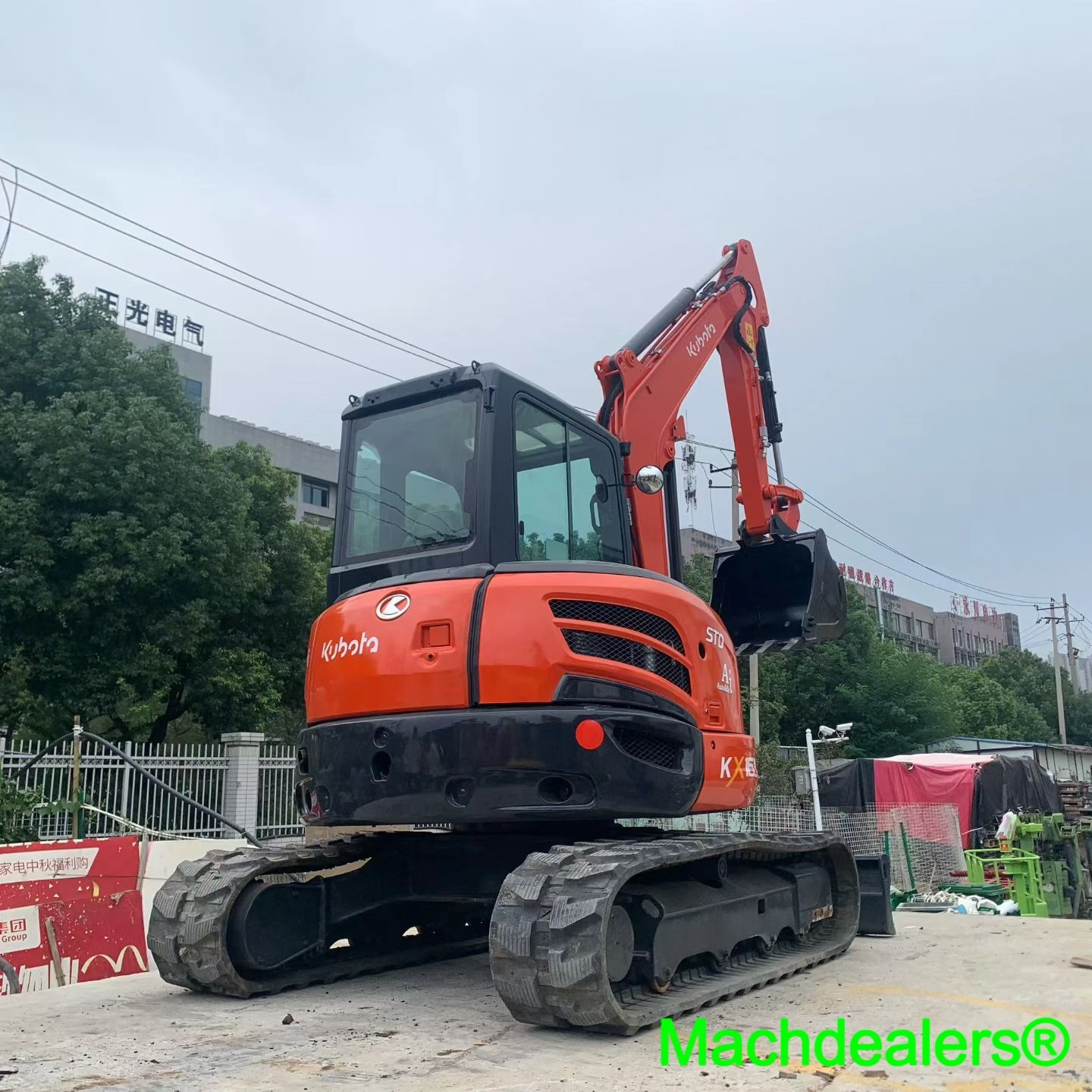

2021 Kubota KX163-5 Tracked Mini Excavator
Condition:Refurbished
Hours:1000
Country:USA
Overview
| Brand | Kubota |
|---|---|
| Model | KX163-5 |
| Country | USA |
| Year | 2021 |
| Hours | 1000 |
| Operating Weight | 5.5 Tons |
| Bucket Capacity | 0.22 m³ |
| Condition | Refurbished |
| Supplier Name | Sunbelt Rentals, Inc. |
Product Description

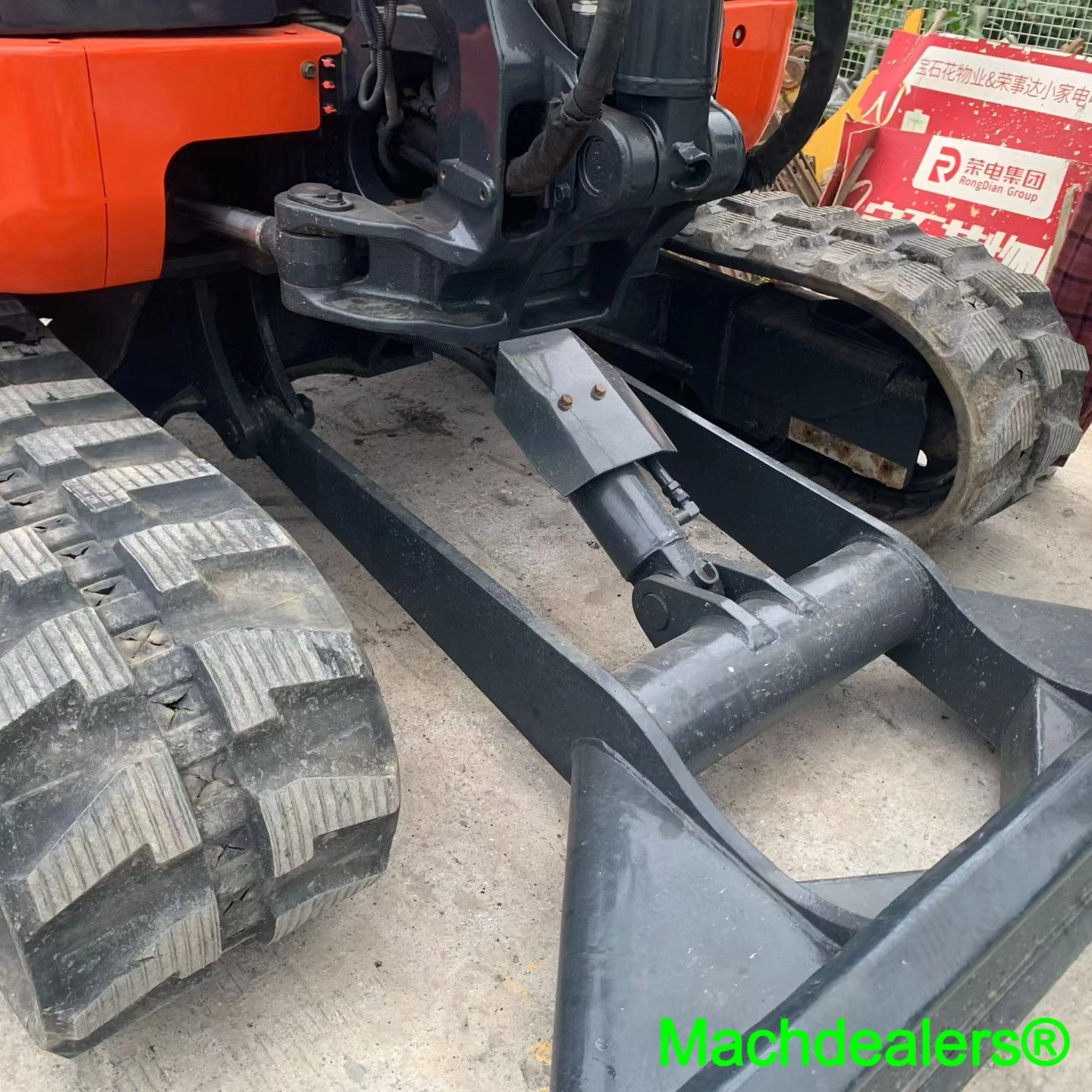

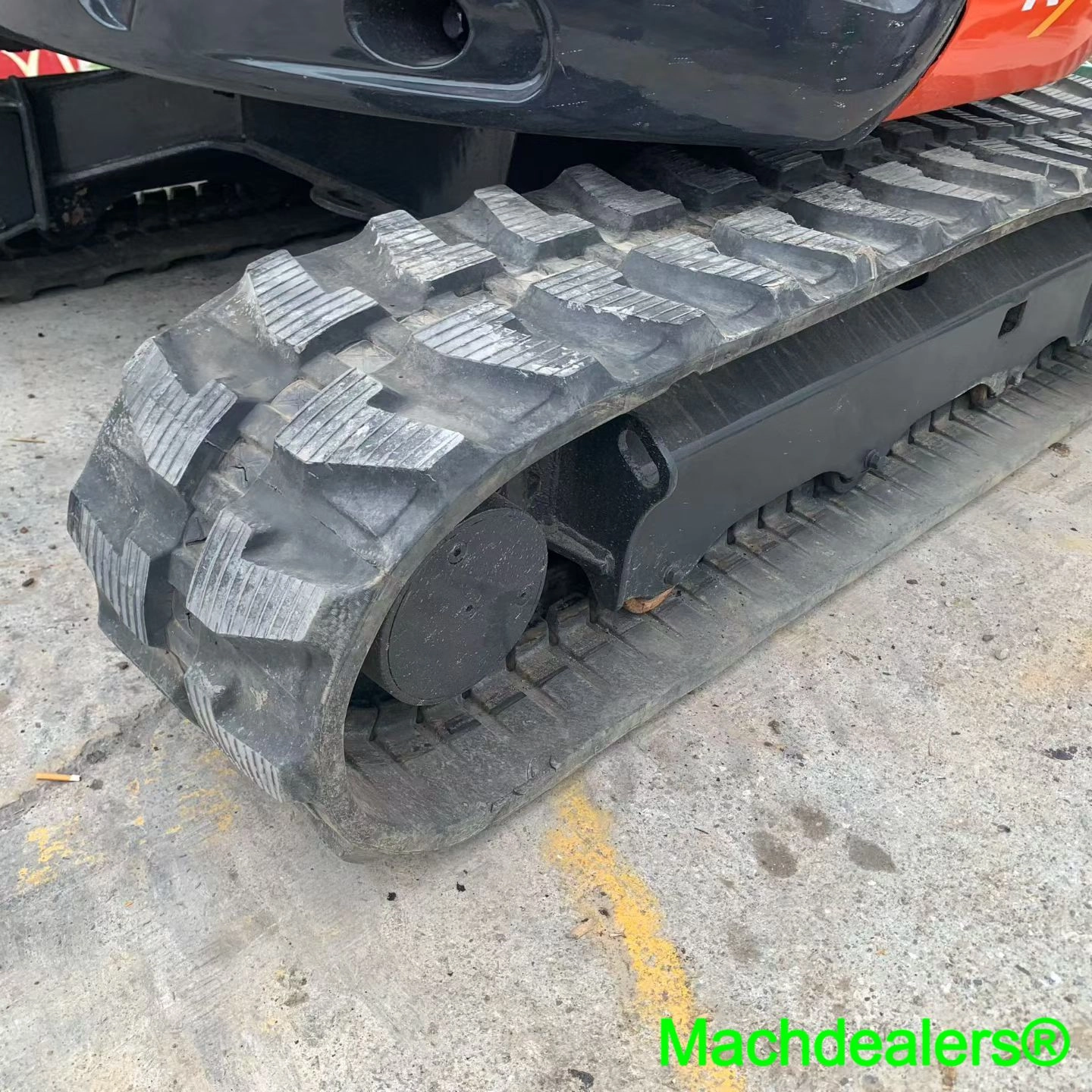

Honestly, the first thing I examined on this machine yesterday afternoon was the underside as that is where you will find the answers on all these type of Kubota KX163 machines, Rubber tracks worn down about half, lug tops rounded out but body of tread is OK – No cracks on sidewalls, no splits that I could see, and tension is not too loose. Track is dirty, but that is just from being parked on a slab and some site dust as well as concrete grime – nothing structural. Front Idler Seal is dry. No oil. So, it seems under isn’t wet at all—no wait a second, I removed the travel motor cover area and placed my hand under it and re-checked and still nothing – it’s just old dust packed under there – the seals are holding fast and no fresh oil is seeping out. Blade linkage pivot pins have some rust on them which is quite normal as this machine has been kept outside, does not affect their performance at this time, however noted to sound to the customer should they wish to be anal.

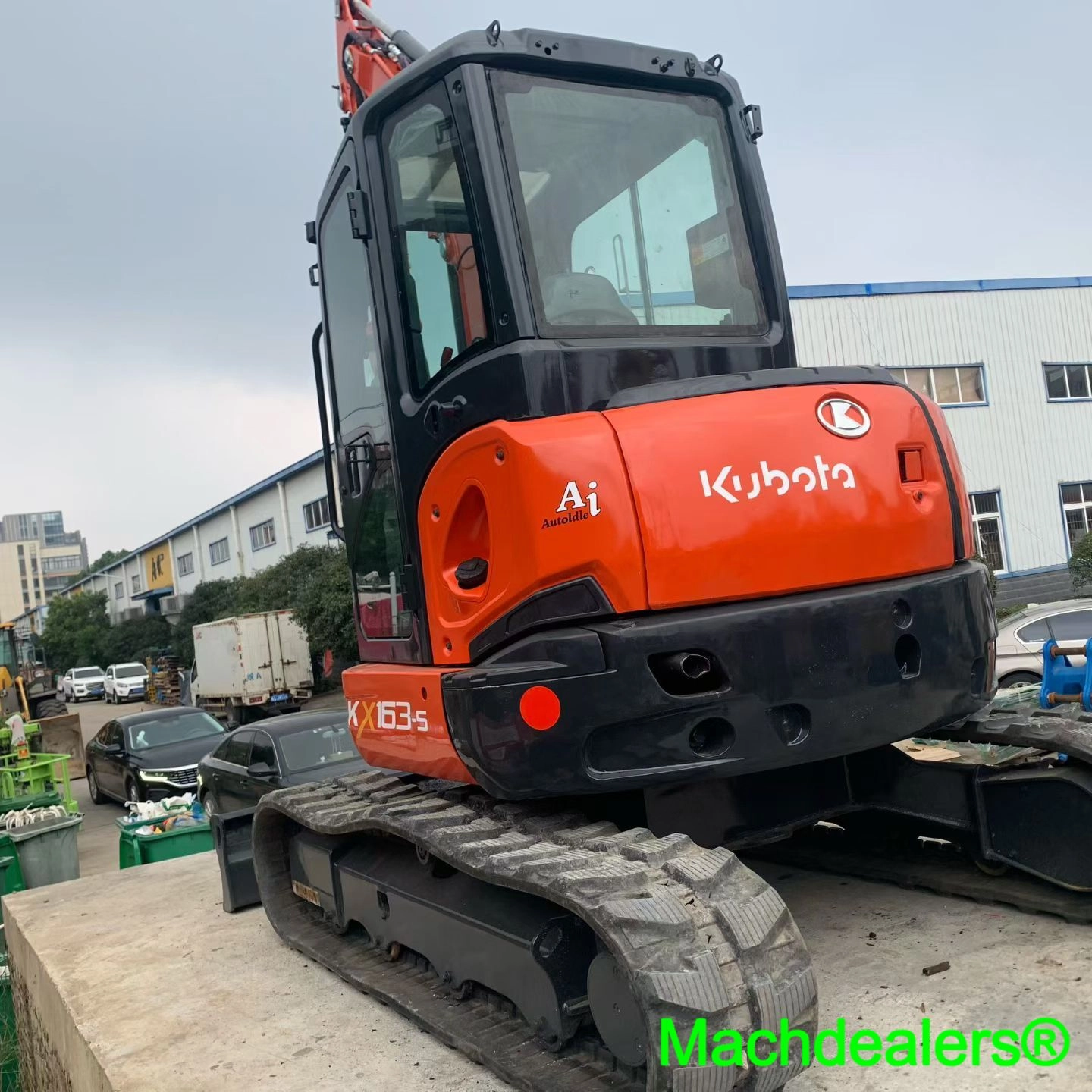

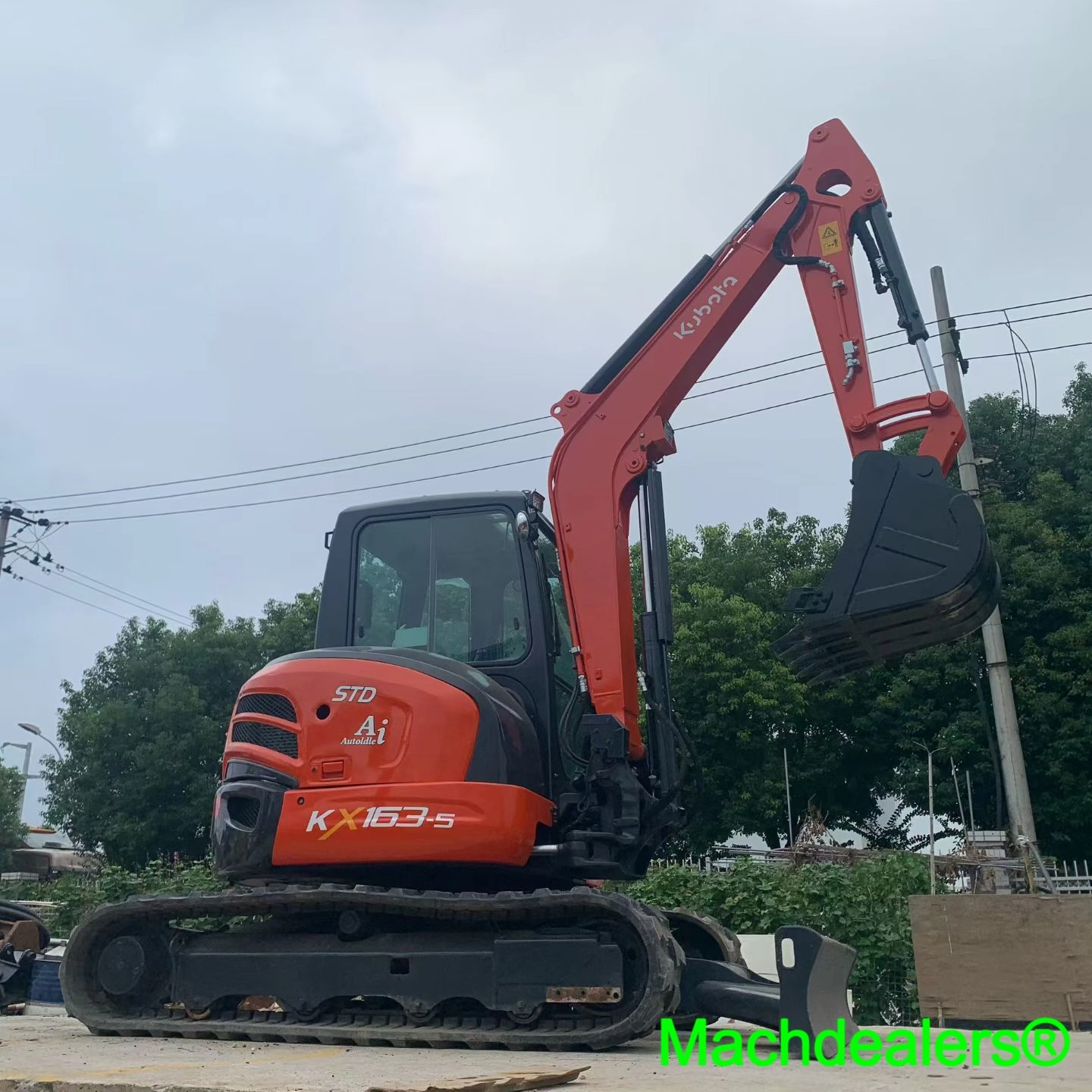

Upper structure paint has a holding up orange color with no major gouges and cab surround paint is black with scuffed areas. Machine has the ai autoidle badge on the cowling so that is at least there, didn’t run the machine myself to confirm that it would work, but as per description from the seller. Boom and arm appear clean, cylinder lines along boom don’t appear to have any weepage of the fittings to the eye with my light source. Machine digs fine. No play.It is a full glass cab and from what I could see from the glass, it’s not wrecked inside, however during my visit I could not open it up and so I’m assuming from the sight of it, there is a floor mat and an intact seat and NO broken glass, no broken panels that I noticed. I did top to bottom inspection of the top of engine bay and engine bay was not leaking I didn’t see black around the valve cover or a bottom pit when the guy ran it that day. Overall this is a used mini that is tired but not beaten, pins are tight and nothing weird is reported in regards to sound.
Product Condition Checklist
| Item | Condition |
|---|---|
| Brand | Kubota |
| Model | KX163 |
| Config | STD |
| AutoIdle | Yes |
| Paint | Good |
| Cab | Full |
| Glass | Ok |
| Mirror | Present |
| Seat | Used |
| K Emblem | Present |
| Boom Label | Present |
| Safety Label | Present |
| Boom | Good |
| Arm | Good |
| Bucket | Used |
| Bucket Teeth | Present |
| Hyd Cylinder (Boom) | Ok |
| Hyd Cylinder (Arm) | Ok |
| Hyd Cylinder (Bucket) | Ok |
| Hyd Lines | Ok |
| Blade | Present |
| Blade Hyd | Present |
| Blade Frame | Ok |
| Undercarriage | Used |
| Track (L) | Used |
| Track (R) | Used |
| Track Lug | Worn |
| Track Crack | Minor |
| Front Idler | Present |
| Tension Cap | Present |
| Frame Rust | Minor |
| Blade Rust | Minor |
| Engine Cover | Present |
| Counterweight | Present |
| Oil Leak | No |
| Upper House | Good |
| Lower Frame | Ok |
Detailed Inspection & Specification Report
| Category | Item | Condition |
|---|---|---|
| Key Features & Condition | Adjustable Boom System | No |
| Key Features & Condition | Automatic Lubrication System | No |
| Key Features & Condition | Back Camera | No |
| Key Features & Condition | Quick Coupler | No |
| Key Features & Condition | Hydraulic Hammer Lines | No |
| Key Features & Condition | Grapple and Shear Hydraulic Lines | No |
| Key Features & Condition | Mono Boom | Yes |
| Key Features & Condition | Stabilizer Blade Condition | Ok |
| Operator Cabin Details | Seat and Arm Support | Ok |
| Operator Cabin Details | Cab Doors & Covers | Ok |
| Operator Cabin Details | Control Levers, Control Stick | Ok |
| Operator Cabin Details | Windows and Mirrors | Ok |
| Operator Cabin Details | Dashboard Screen, Gauges | Ok |
| Operator Cabin Details | Cab Structure, Guard | Ok, no guard |
| Engine & Performance | Fuel Injection Type | Electronic |
| Engine & Performance | Engine Model | Kubota V2607 |
| Engine & Performance | Engine Cooling System | Ok |
| Engine & Performance | Leaks & Seals | No visible leaks |
| Engine & Performance | Engine Cover | Ok |
| Exterior Condition & Visual Inspection | Main Frame & Track Frame | Ok |
| Exterior Condition & Visual Inspection | Protective Covers & Sheets | Ok |
| Exterior Condition & Visual Inspection | Engine Hood | Ok |
| Exterior Condition & Visual Inspection | Side Access Doors | Ok |
| Exterior Condition & Visual Inspection | Boom Condition | Used |
| Exterior Condition & Visual Inspection | Bumpers & Catwalk Condition | Ok |
| Exterior Condition & Visual Inspection | Arm Condition | Used |
| Exterior Condition & Visual Inspection | Counterweight | Ok |
| Exterior Condition & Visual Inspection | Exterior Paint Condition | Good |
| Hydraulic System | Hydraulic Leaks | None visible |
| Hydraulic System | Boom Hydraulic Jack | Ok |
| Hydraulic System | Hydraulic Pump & Valve Block | Ok |
| Attachments | Model | Digging Bucket |
| Attachments | Size | Standard |
| Attachments | Status | Used |
| Attachments | Coupler Status | Pin – on |
| Undercarriage & Tracks | Track Type | Rubber |
| Undercarriage & Tracks | Track Tread | Worn |
| Undercarriage & Tracks | Track Cracks | None visible |
| Undercarriage & Tracks | Idler Condition | Ok |
| Undercarriage & Tracks | Sprocket Condition | Ok |
| Undercarriage & Tracks | Track Frame | Ok |
| Undercarriage & Tracks | Track Width | 400 |
| Undercarriage & Tracks | Undercarriage Rust | Minor |
| Undercarriage & Tracks | Damages / Cuts | Minor wear |
Estimated Price
$15,500.00
Note: “This price does not include export duties and shipping costs. Please consult the supplier for specific transaction procedures and details.”
The supplier of this machine
Supplier Name:Sunbelt Rentals, Inc.
Supplier Description:Sunbelt Rentals is the second-largest rental company in the United States and is a subsidiary of the UK-based Ashtead Group.
Supplier address:********** Fort Mill, SC 29715, USA
